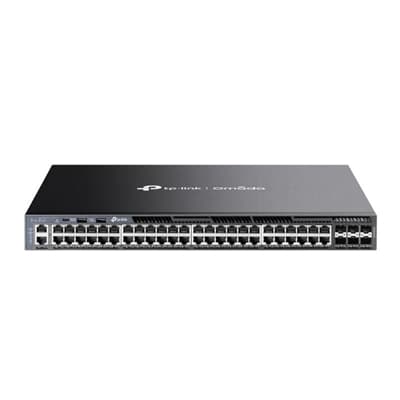

TP-LINK
| Marca | TP-Link |
| Modelo | SG6654X |
| Puertos | - 48 × 10/100/1000 Mbps RJ45 Ports - 6 × 10G SFP+ Slots - 2 × USB 2.0 Ports - 1 × RJ45 Console Port - 1 × USB Type-C Console Port - 1 × RJ45 Management Port |
| Rendimiento | - Capacidad de Conmutación: 216 Gbps por Unidad - Apilamiento: Número de apilamiento: 4 Puerto de apilamiento: Ranura SFP+ 10G (todos los puertos de enlace ascendente se pueden utilizar como puertos de apilamiento) Ancho de banda de pila: hasta 120 Gbps (6 puertos de pila) - Tasa de Reenvío de Paquetes: 160.7 Mpps - Tabla de Direcciones MAC : 32 K - Memoria del Buffer de Paquete: 3 MB - Jumbo Frame: 9 KB |
| Software | Calidad de Servicio - Class of Service: 8 Queues of Priority Port Priority IEEE 802.1p Priority DSCP Priority Queue Min Bandwidth Schedule Mode (SP, WRR, SP+WRR) - Bandwidth Control: Rate Limit Storm Control - Voice VLAN - User Defined OUI - Smoother Performance - Action for Flows: QoS remark (802.1P Remark, DSCP Remark) Características L3 - IP Interfaces: IPv4: Max 256, IPv6: Max 256 - Static Routing Max 1,024, IPv6: Max 512 - Host Route Table: Max 6,100 entries - RIP: Version v1/v2, Max 8,190 - OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 - VRRP: Version v2/v3, Max 64 groups - ECMP: 256 entries, max 32 ECMP Nexthops per Destination - Static ARP: 512 static entries - Dynamic ARP: 7,680 dynamic entries - Proxy ARP - DHCP Server: Max 8K IP Pools Max 1,000 Manual Binding Entries - DHCP Relay: Relayed Interface Relayed VLAN Características L2 y L2+ - Link Aggregation - Spanning Tree Protocol - Port based and VLAN based Loopback Detection - 802.3x Flow Control - Supports 2,048 IGMP groups - ERPS - Mirroring - RSPAN - MAC Address Table - PIM DM (IPv4) - Multicast: IGMP Snooping MLD Snooping L2 Multicast Table Fast Leave Multicast VLAN Registration (MVR) Static Multicast IP Multicast Filtering Características Avanzadas - Automatic Device Discovery - Batch Configuration - Batch Firmware Upgrading - Intelligent Network Monitoring - Abnormal Event Warnings - Unified Configuration - Reboot Schedule - ISP Features: 802.3ah Ethernet Link OAM L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) DDM sFlow VLAN - Max 4K VLAN Group (802.1q VLAN) - 802.1Q Tagged VLAN - MAC VLAN Entries: 200 - Multicast VLAN - Management VLAN - VLAN VPN (QinQ): Max 256 entries - GVRP - Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries - VLAN VPN - Voice VLAN - Private VLAN Seguridad - Port Isolation - CPU Defend - ARP Inspection (Dynamic ARP Inspection) - DoS Defend - IP MAC Port Binding: 1,024 Entries DHCP Snooping ARP Inspection IPv4 Source Guard - IPv6 MAC: Port Binding 1,024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard - DHCP Filter - Static/Dynamic Port Security: Up to 64 MAC addresses per port - Broadcast/Multicast/Unknown unicast Storm Control: kbps/ratio control mode - 802.1X: Port base authentication Mac base authentication VLAN Assignment MAB Guest VLAN RADIUS authentication and accountability support - AAA (including TACACS+) - Secure web management through HTTPS with SSLv3/TLS 1.2 - Secure Command Line Interface (CLI) management with SSHv2 - IP/Port/MAC based access control |
Especificaciones | - Cantidad de Ventiladores: 4 x ventiladores internos fijos - Fuente de Alimentación: 2 x módulos internos de fuente de alimentación fija (100–240 VCA, 50/60 Hz) - Montaje en rack - Consumo de potencia máximo 39,8 W (220 V/50 Hz) - Disipación máxima de calor 135,81 BTU/h (220 V/50 Hz) - Requisitos del sistema: Microsoft Windows 98SE, NT, 2000, XP Vista o Windows 7/8/10/11 MAC OS, NetWare, UNIX o Linux Gestión - Omada App: Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. - Gestión Centralizada Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller - Acceso a la nube: Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. - Aprovisionamiento sin contacto: Requiring the use of the Omada Cloud-Based Controller. - Funciones de gestión: Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics Password Recovery SNTP - System Log - EEE Factores Ambientales - Temperatura de Operación: -5 ºC a 50 ºC a 300 metros -5 ºC a 45 ºC a 2000 metros -5 ºC a 40 ºC a 3000 metros - Temperatura de almacenamiento: -40 ºC a 70 ºC - Humedad de funcionamiento: 10–90% HR sin condensación - Humedad de almacenamiento: 5–90% RH sin condensación Dimensiones - 440 × 380 × 44 mm Contenido - Interruptor SG6654X - 2 × cables de alimentación - Cable de consola RJ45 - Guía de instalación rápida - Kit de montaje en bastidor - Pies de goma |
| Fecha de revisión | 24-09-2024 por RTY |
| Marca | TP-Link |
| Modelo | SG6654X |
| Puertos | - 48 × 10/100/1000 Mbps RJ45 Ports - 6 × 10G SFP+ Slots - 2 × USB 2.0 Ports - 1 × RJ45 Console Port - 1 × USB Type-C Console Port - 1 × RJ45 Management Port |
| Rendimiento | - Capacidad de Conmutación: 216 Gbps por Unidad - Apilamiento: Número de apilamiento: 4 Puerto de apilamiento: Ranura SFP+ 10G (todos los puertos de enlace ascendente se pueden utilizar como puertos de apilamiento) Ancho de banda de pila: hasta 120 Gbps (6 puertos de pila) - Tasa de Reenvío de Paquetes: 160.7 Mpps - Tabla de Direcciones MAC : 32 K - Memoria del Buffer de Paquete: 3 MB - Jumbo Frame: 9 KB |
| Software | Calidad de Servicio - Class of Service: 8 Queues of Priority Port Priority IEEE 802.1p Priority DSCP Priority Queue Min Bandwidth Schedule Mode (SP, WRR, SP+WRR) - Bandwidth Control: Rate Limit Storm Control - Voice VLAN - User Defined OUI - Smoother Performance - Action for Flows: QoS remark (802.1P Remark, DSCP Remark) Características L3 - IP Interfaces: IPv4: Max 256, IPv6: Max 256 - Static Routing Max 1,024, IPv6: Max 512 - Host Route Table: Max 6,100 entries - RIP: Version v1/v2, Max 8,190 - OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 - VRRP: Version v2/v3, Max 64 groups - ECMP: 256 entries, max 32 ECMP Nexthops per Destination - Static ARP: 512 static entries - Dynamic ARP: 7,680 dynamic entries - Proxy ARP - DHCP Server: Max 8K IP Pools Max 1,000 Manual Binding Entries - DHCP Relay: Relayed Interface Relayed VLAN Características L2 y L2+ - Link Aggregation - Spanning Tree Protocol - Port based and VLAN based Loopback Detection - 802.3x Flow Control - Supports 2,048 IGMP groups - ERPS - Mirroring - RSPAN - MAC Address Table - PIM DM (IPv4) - Multicast: IGMP Snooping MLD Snooping L2 Multicast Table Fast Leave Multicast VLAN Registration (MVR) Static Multicast IP Multicast Filtering Características Avanzadas - Automatic Device Discovery - Batch Configuration - Batch Firmware Upgrading - Intelligent Network Monitoring - Abnormal Event Warnings - Unified Configuration - Reboot Schedule - ISP Features: 802.3ah Ethernet Link OAM L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) DDM sFlow VLAN - Max 4K VLAN Group (802.1q VLAN) - 802.1Q Tagged VLAN - MAC VLAN Entries: 200 - Multicast VLAN - Management VLAN - VLAN VPN (QinQ): Max 256 entries - GVRP - Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries - VLAN VPN - Voice VLAN - Private VLAN Seguridad - Port Isolation - CPU Defend - ARP Inspection (Dynamic ARP Inspection) - DoS Defend - IP MAC Port Binding: 1,024 Entries DHCP Snooping ARP Inspection IPv4 Source Guard - IPv6 MAC: Port Binding 1,024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard - DHCP Filter - Static/Dynamic Port Security: Up to 64 MAC addresses per port - Broadcast/Multicast/Unknown unicast Storm Control: kbps/ratio control mode - 802.1X: Port base authentication Mac base authentication VLAN Assignment MAB Guest VLAN RADIUS authentication and accountability support - AAA (including TACACS+) - Secure web management through HTTPS with SSLv3/TLS 1.2 - Secure Command Line Interface (CLI) management with SSHv2 - IP/Port/MAC based access control |
Especificaciones | - Cantidad de Ventiladores: 4 x ventiladores internos fijos - Fuente de Alimentación: 2 x módulos internos de fuente de alimentación fija (100–240 VCA, 50/60 Hz) - Montaje en rack - Consumo de potencia máximo 39,8 W (220 V/50 Hz) - Disipación máxima de calor 135,81 BTU/h (220 V/50 Hz) - Requisitos del sistema: Microsoft Windows 98SE, NT, 2000, XP Vista o Windows 7/8/10/11 MAC OS, NetWare, UNIX o Linux Gestión - Omada App: Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. - Gestión Centralizada Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller - Acceso a la nube: Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. - Aprovisionamiento sin contacto: Requiring the use of the Omada Cloud-Based Controller. - Funciones de gestión: Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics Password Recovery SNTP - System Log - EEE Factores Ambientales - Temperatura de Operación: -5 ºC a 50 ºC a 300 metros -5 ºC a 45 ºC a 2000 metros -5 ºC a 40 ºC a 3000 metros - Temperatura de almacenamiento: -40 ºC a 70 ºC - Humedad de funcionamiento: 10–90% HR sin condensación - Humedad de almacenamiento: 5–90% RH sin condensación Dimensiones - 440 × 380 × 44 mm Contenido - Interruptor SG6654X - 2 × cables de alimentación - Cable de consola RJ45 - Guía de instalación rápida - Kit de montaje en bastidor - Pies de goma |
| Fecha de revisión | 24-09-2024 por RTY |
