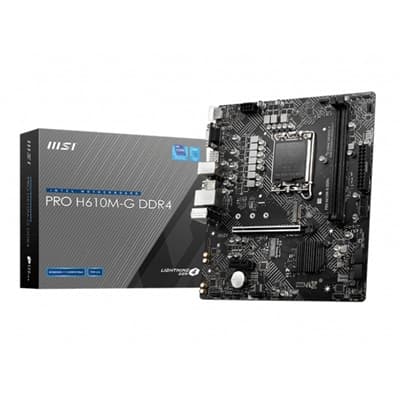

MSI
| Marca | MSI |
| Modelo | 911-7D46-003 |
| Plataforma | - mATX (23.6 cm x 20.2 cm) |
| Chipset | - Intel® H610 Chipset |
| CPU Soportados | - Admite procesadores Intel Core, Pentium Gold y Celeron de 12ª, 13ª y 14ª generación - Zócalo del procesadorLGA1700 |
| Memoria | - 2 xDDR4, soporta hasta 64GB - Soporta 1R 2133/ 2666/ 3200 MHz (por JEDEC y POR) - Admite el modo de doble canal - Admite memoria sin búfer ni ECC |
Slots Expansión | - 1x PCIe x16 slot (From CPU) - 1x PCIe x1 slot - 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Gráficos | - 1x HDMI 2.1 with HDR port, a maximum resolution of 4K 60Hz 1 2 - 1x VGA port, a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1 - 1x DisplayPort 1.4 port, a maximum resolution of 4K 60Hz |
Puertos E/S, Conectores | Conectores Internos E/S - 1x Intel® I219V 1Gbps LAN controller - 1x 24-pin ATX main power - 1x 8-pin ATX 12V power - 1x 4-pin CPU fan - 1x 4-pin system fan - 1x Front panel audio - 2x System panel s - 1x Chassis Intrusion - 1x TPM module - 1x Clear CMOS jumper Panel E/S Trasero - VGA - DisplayPort - Keyboard/Mouse - USB 3.2 Gen 1 5Gbps Type-A - LAN port - Audio connector - USB 2.0 |
Otras Características | USB - Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) Almacenamiento - 4x SATA 6Gb/s ports Audio - Realtek® ALC892/ ALC897 Codec - 7.1-Channel High Definition Audio LAN - 1x Intel® I219V 1Gbps LAN controller Sistema Operativo - Soporte para Windows 11 64-bit |
| Fecha Revisión | 23-06-2025 por RTY |
