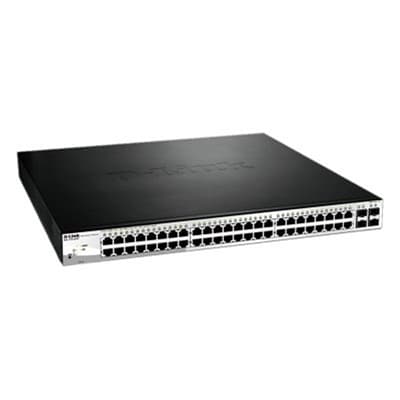

D-Link
| Marca | D-Link |
| Modelo | DGS-1210-52MP/E |
| Características | - Puertos 10/100 /1000BASE-TX:48 puertos - Puertos SFP:4 Puertos - Capacidad de switch: 104 Gbps - Tamaño de la tabla de direcciones MAC: 16K - Buffer de paquetes: 3 MB por dispositivo - Consumo(Standby/Máximo): 48.9W / 483.1W (PoE) - Dimensiones: 440 x 430 x 44 mm - Peso: 5.78 kg - Ventilación: Ventilador inteligente - Temperatura: Operación: -5° a 50°C (23° a 112°F) Almacenamiento: -20° a 70°C (-4° a 158°F) - Humedad Operación: 0% ~ 95% sin condensación Almacenamieno: 0% ~ 95% sin condensación - Certificación: CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick L2 Features MAC Address Table - 16K entries IGMP Snooping - IGMP v1/v2 Snooping - Supports 256 IGMP groups - Supports at least 64 static multicast addresses - IGMP per VLAN - Supports IGMP Snooping Querier Loopback Detection 802.3ad Link Aggregation: - DGS-1210 28/28P: Maximum of 14 groups/8 ports per group - DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group - DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group LLDP LLDP-MED Jumbo Frame - Up to 9,216 bytes Spanning Tree Protocol - 802.1D STP - 802.1w RSTP Flow Control - 802.3x Flow Control - HOL Blocking Prevention Port Mirroring - One-to-One - Many-to-One - Supports Mirroring for Tx/Rx/Both Multicast Filtering - Forwards all unregistered groups - Filters all unregistered groups Configurable MDI/MDIX - MLD snooping v1/v2 (256 groups) VLAN 802.1Q VLAN Group - Max. 256 static VLAN groups Configurable VID from 1 - 4094 Asymmetric VLAN Auto Voice VLAN - Max. 10 user-defined OUI - Max. 8 default OUI Auto Surveillance VLAN Quality of Service (QoS) 802.1p Quality of Service 8 queues per port Queue Handling - Strict - Weighted Round Robin (WRR) Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) QoS based on: - 802.1p Priority Queues - DSCP - ToS - IPv6 Traffic Class - TCP/UDP port |
| Fecha Revisión | 13-06-2022 por MPM |
| Marca | D-Link |
| Modelo | DGS-1210-52MP/E |
| Características | - Puertos 10/100 /1000BASE-TX:48 puertos - Puertos SFP:4 Puertos - Capacidad de switch: 104 Gbps - Tamaño de la tabla de direcciones MAC: 16K - Buffer de paquetes: 3 MB por dispositivo - Consumo(Standby/Máximo): 48.9W / 483.1W (PoE) - Dimensiones: 440 x 430 x 44 mm - Peso: 5.78 kg - Ventilación: Ventilador inteligente - Temperatura: Operación: -5° a 50°C (23° a 112°F) Almacenamiento: -20° a 70°C (-4° a 158°F) - Humedad Operación: 0% ~ 95% sin condensación Almacenamieno: 0% ~ 95% sin condensación - Certificación: CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick L2 Features MAC Address Table - 16K entries IGMP Snooping - IGMP v1/v2 Snooping - Supports 256 IGMP groups - Supports at least 64 static multicast addresses - IGMP per VLAN - Supports IGMP Snooping Querier Loopback Detection 802.3ad Link Aggregation: - DGS-1210 28/28P: Maximum of 14 groups/8 ports per group - DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group - DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group LLDP LLDP-MED Jumbo Frame - Up to 9,216 bytes Spanning Tree Protocol - 802.1D STP - 802.1w RSTP Flow Control - 802.3x Flow Control - HOL Blocking Prevention Port Mirroring - One-to-One - Many-to-One - Supports Mirroring for Tx/Rx/Both Multicast Filtering - Forwards all unregistered groups - Filters all unregistered groups Configurable MDI/MDIX - MLD snooping v1/v2 (256 groups) VLAN 802.1Q VLAN Group - Max. 256 static VLAN groups Configurable VID from 1 - 4094 Asymmetric VLAN Auto Voice VLAN - Max. 10 user-defined OUI - Max. 8 default OUI Auto Surveillance VLAN Quality of Service (QoS) 802.1p Quality of Service 8 queues per port Queue Handling - Strict - Weighted Round Robin (WRR) Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) QoS based on: - 802.1p Priority Queues - DSCP - ToS - IPv6 Traffic Class - TCP/UDP port |
| Fecha Revisión | 13-06-2022 por MPM |
Low Stock (5 left)
