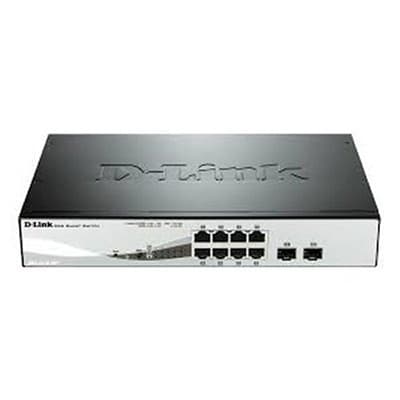

D-Link
| Marca | D-Link |
| Modelo | DGS-1210-08P/E |
| Especificaciones | -8 puertos 10/100/1000 Mbps - 2 Puertos SFP Standards - IEEE 802.3 compliant - IEEE 802.3u compliant - IEEE 802.3ab compliance - Soporta Half/Full-duplex operation at 10/100Mbps - Soporta Full-duplex operation at 1000Mbps - Soporta Auto-Negotiation for each port - Auto MDI/MDIX - IEEE 802.3x Flow Control support - IEEE 802.3az compliant Rendimiento: 20Gbps - Max.velocidad envío 14.9 Mpps - Tamaño tabla MAC 16K Entries - Packet Buffer 6Mbits - Jumbo Frame Hasta 13,000 Bytes -Alimentación: 110 to 240 VAC, 50/60HZ internal universal power supply - Max.Consumo 60 Watts - Consumo Standy 5.6 Watts - Sin ventilador - Nivel acústico: 0 dBA - Dimensions (W x D x H) 280 x 180 x 44 mm 19-inch standard rack 1U - Peso: 0.42kg - LEDs Power (per device) Link/Activity/Speed/PoE (per 10/100/1000 Mbps port) Link/Activity/Speed (per SFP port) Button to switch LED display mode between PoE and Link/ActivityPower (per device) - Certifications CE Class A cUL, LVD - MTBF 503,585 Hours (DGS-1100-08) Funciones L2 - MAC Address Table: 16K - Flow Control 802.3x Flow Control HOL Blocking Prevention - Jumbo Frame up to 13,000 Bytes - IGMP Snooping IGMP v1/v2 Snooping IGMP Snooping v3 Awareness Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier - MLD Snooping1 Supports MLD v1/v2 awareness Supports 256 groups Fast Leave - Spanning Tree Protocol 802.1D STP 802.1w RSTP - Loopback Detection - 802.3ad Link Aggregation DGS-1210-10P: Max. 5 groups per device/8 ports per group DGS-1210-20: Max. 10 groups per device/8 ports per group DGS-1210-28/28P: Max. 14 groups per device/8 ports per group DGS-1210-52: Max. 26 groups per device/8 ports per group DGS-1210-16/24/48: Max. 8 groups per device/8 ports per group - Port Mirroring One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both - Multicast Filtering Forwards all unregistered groups Filters all unregistered groups LLDP, LLDP-MED VLAN - 802.1Q Tagged VLAN - VLAN Group Max. 256 static VLAN groups Max. 4094 VIDs - Management VLAN - Asymmetric VLAN - Auto Voice VLAN Max. 10 user-defined OUI Max. 8 default OUI - Auto Surveillance VLAN Quality of Service (QoS) - 802.1p Quality of Service - Queue Handling Strict Weighted Round Robin (WRR) - 8 queues per port - Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s) - CoS based on 802.1p Priority Queues DSCP ToS TCP/UDP port number IPv6 traffic class1 Access Control List (ACL) - Max. 50 profiles - Max. 200 rules shared by profiles - Single or multiple ports (each rule) - ACL based on MAC Address IPv4 Address (ICMP/IGMP/TCP/UDP) IPv6 Address (ICMP/TCP/UDP)1 802.1p DSCP Ether type IPv6 traffic class1 - ACL Actions Permit Deny Seguridad - Port Security Supports up to 64 MAC addresses per port - Broadcast/Multicast/Unicast Storm Control - Static MAC - D-Link Safeguard Engine - DHCP Server Screening - Trusted Host - ARP Spoofing Prevention Max. 64 entries - SSL Supports v1/v2/v3 Supports IPv4/IPv6 - Traffic Segmentation - Smart Binding1 Discover connected devices and click to bind ARP Packet Inspection: 512 entries IP Packet Inspection: 128 entries Supports DHCP Snooping AAA - 802.1X Port-based Authentication Supports RADIUS Server Supports EAP, OTP, TLS, TTLS, PEAP OAM - Cable Diagnostics - Factory Reset MIB - 1213 MIB II - 1493 Bridge MIB - 1907 SNMP v2 MIB - 1215 Trap Convention MIB - 2233 Interface Group MIB - D-Link Private MIB - Power-Ethernet MIB - LLDP MIB - D-Link ZoneDefense MIB1 RFC Standard Compliance - RFC 783 TFTP - RFC 854 Telnet Server - RFC 951 BootP/DHCP Client - RFC 1157 SNMP v1, v2, v3 - RFC 1213 MIB II, IF MIB - RFC 1215 MIB Traps Convention - RFC 1350 TFTP - RFC 1493 Bridge MIB - RFC 1542 BootP/DHCP Client - RFC 1769 SNTP - RFC 1901 SNMP v1, v2, v3 - RFC 1907 SNMP v2 MIB - RFC 1908 SNMP v1, v2, v3 - RFC 2068 FCS - RFC 2131 BootP/DHCP Client - RFC 2138 RADIUS Authentication - RFC 2139 RADIUS Authentication - RFC 2233 Interface Group MIB - RFC 2246 SSL - RFC 2475 - RFC 2570 SNMP v1, v2, v3 - RFC 2575 SNMP v1, v2, v3 - RFC 2598 CoS - RFC 2616 FCS - RFC 2618 RADIUS Authentication - RFC 2819 RMON v1 - RFC 2865 RADIUS Authentication - RFC 3164 System Log - RFC 3195 System Log - RFC 3411-17 SNMP - RFC 3621 Power Ethernet MIB Gestión - Multi-Language Web-based GUI English (default) Simplified Chinese1 Traditional Chinese1 French1 German1 Italian1 Japanese1 Portuguese1 Russian1 Spanish1 - SmartConsole Utility2 - Simplified CLI - Telnet Server - TFTP Client - IPv6 Neighbor Discovery - Configurable MDI/MDIX - SNMP Supports v1, v2, v3 - SNMP Trap - System Log Max. 500 log entries - BootP/DHCP Client - D-Link Network Assistant support1 - SNTP - ICMPv6 - IPv4/v6 Dual Stack1 - DHCP Auto Configuration - RMON v1 D-Link Green 3.0 Technology - Power Saving by: Link Status Cable Length detection LED or Port Shutoff Port Standby mode System Hibernation mode Time-based PoE (PoE model only) |
| Fecha de revisión | 13-06-2022 por MPM |
| Marca | D-Link |
| Modelo | DGS-1210-08P/E |
| Especificaciones | -8 puertos 10/100/1000 Mbps - 2 Puertos SFP Standards - IEEE 802.3 compliant - IEEE 802.3u compliant - IEEE 802.3ab compliance - Soporta Half/Full-duplex operation at 10/100Mbps - Soporta Full-duplex operation at 1000Mbps - Soporta Auto-Negotiation for each port - Auto MDI/MDIX - IEEE 802.3x Flow Control support - IEEE 802.3az compliant Rendimiento: 20Gbps - Max.velocidad envío 14.9 Mpps - Tamaño tabla MAC 16K Entries - Packet Buffer 6Mbits - Jumbo Frame Hasta 13,000 Bytes -Alimentación: 110 to 240 VAC, 50/60HZ internal universal power supply - Max.Consumo 60 Watts - Consumo Standy 5.6 Watts - Sin ventilador - Nivel acústico: 0 dBA - Dimensions (W x D x H) 280 x 180 x 44 mm 19-inch standard rack 1U - Peso: 0.42kg - LEDs Power (per device) Link/Activity/Speed/PoE (per 10/100/1000 Mbps port) Link/Activity/Speed (per SFP port) Button to switch LED display mode between PoE and Link/ActivityPower (per device) - Certifications CE Class A cUL, LVD - MTBF 503,585 Hours (DGS-1100-08) Funciones L2 - MAC Address Table: 16K - Flow Control 802.3x Flow Control HOL Blocking Prevention - Jumbo Frame up to 13,000 Bytes - IGMP Snooping IGMP v1/v2 Snooping IGMP Snooping v3 Awareness Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier - MLD Snooping1 Supports MLD v1/v2 awareness Supports 256 groups Fast Leave - Spanning Tree Protocol 802.1D STP 802.1w RSTP - Loopback Detection - 802.3ad Link Aggregation DGS-1210-10P: Max. 5 groups per device/8 ports per group DGS-1210-20: Max. 10 groups per device/8 ports per group DGS-1210-28/28P: Max. 14 groups per device/8 ports per group DGS-1210-52: Max. 26 groups per device/8 ports per group DGS-1210-16/24/48: Max. 8 groups per device/8 ports per group - Port Mirroring One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both - Multicast Filtering Forwards all unregistered groups Filters all unregistered groups LLDP, LLDP-MED VLAN - 802.1Q Tagged VLAN - VLAN Group Max. 256 static VLAN groups Max. 4094 VIDs - Management VLAN - Asymmetric VLAN - Auto Voice VLAN Max. 10 user-defined OUI Max. 8 default OUI - Auto Surveillance VLAN Quality of Service (QoS) - 802.1p Quality of Service - Queue Handling Strict Weighted Round Robin (WRR) - 8 queues per port - Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s) - CoS based on 802.1p Priority Queues DSCP ToS TCP/UDP port number IPv6 traffic class1 Access Control List (ACL) - Max. 50 profiles - Max. 200 rules shared by profiles - Single or multiple ports (each rule) - ACL based on MAC Address IPv4 Address (ICMP/IGMP/TCP/UDP) IPv6 Address (ICMP/TCP/UDP)1 802.1p DSCP Ether type IPv6 traffic class1 - ACL Actions Permit Deny Seguridad - Port Security Supports up to 64 MAC addresses per port - Broadcast/Multicast/Unicast Storm Control - Static MAC - D-Link Safeguard Engine - DHCP Server Screening - Trusted Host - ARP Spoofing Prevention Max. 64 entries - SSL Supports v1/v2/v3 Supports IPv4/IPv6 - Traffic Segmentation - Smart Binding1 Discover connected devices and click to bind ARP Packet Inspection: 512 entries IP Packet Inspection: 128 entries Supports DHCP Snooping AAA - 802.1X Port-based Authentication Supports RADIUS Server Supports EAP, OTP, TLS, TTLS, PEAP OAM - Cable Diagnostics - Factory Reset MIB - 1213 MIB II - 1493 Bridge MIB - 1907 SNMP v2 MIB - 1215 Trap Convention MIB - 2233 Interface Group MIB - D-Link Private MIB - Power-Ethernet MIB - LLDP MIB - D-Link ZoneDefense MIB1 RFC Standard Compliance - RFC 783 TFTP - RFC 854 Telnet Server - RFC 951 BootP/DHCP Client - RFC 1157 SNMP v1, v2, v3 - RFC 1213 MIB II, IF MIB - RFC 1215 MIB Traps Convention - RFC 1350 TFTP - RFC 1493 Bridge MIB - RFC 1542 BootP/DHCP Client - RFC 1769 SNTP - RFC 1901 SNMP v1, v2, v3 - RFC 1907 SNMP v2 MIB - RFC 1908 SNMP v1, v2, v3 - RFC 2068 FCS - RFC 2131 BootP/DHCP Client - RFC 2138 RADIUS Authentication - RFC 2139 RADIUS Authentication - RFC 2233 Interface Group MIB - RFC 2246 SSL - RFC 2475 - RFC 2570 SNMP v1, v2, v3 - RFC 2575 SNMP v1, v2, v3 - RFC 2598 CoS - RFC 2616 FCS - RFC 2618 RADIUS Authentication - RFC 2819 RMON v1 - RFC 2865 RADIUS Authentication - RFC 3164 System Log - RFC 3195 System Log - RFC 3411-17 SNMP - RFC 3621 Power Ethernet MIB Gestión - Multi-Language Web-based GUI English (default) Simplified Chinese1 Traditional Chinese1 French1 German1 Italian1 Japanese1 Portuguese1 Russian1 Spanish1 - SmartConsole Utility2 - Simplified CLI - Telnet Server - TFTP Client - IPv6 Neighbor Discovery - Configurable MDI/MDIX - SNMP Supports v1, v2, v3 - SNMP Trap - System Log Max. 500 log entries - BootP/DHCP Client - D-Link Network Assistant support1 - SNTP - ICMPv6 - IPv4/v6 Dual Stack1 - DHCP Auto Configuration - RMON v1 D-Link Green 3.0 Technology - Power Saving by: Link Status Cable Length detection LED or Port Shutoff Port Standby mode System Hibernation mode Time-based PoE (PoE model only) |
| Fecha de revisión | 13-06-2022 por MPM |
Low Stock (4 left)
