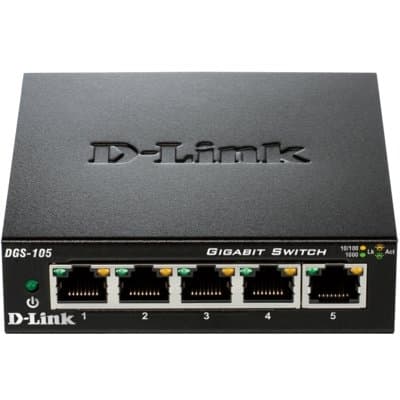

D-Link
| Marca | D-Link |
| Modelo | DGS-105 |
| Standards | - IEEE 802.3 10BASE-T Ethernet - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3ab 1000BASE-T Gigabit Ethernet - ANSI/IEEE 802.3 NWay auto-negotiation - IEEE 802.3x flow control - IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Especificaciones | Nº de puertos - 5 x Puertos Layer2 - MAC address table: 2K - Auto MDI/MDIX crossover for all ports - Store-and-forward switching scheme - Full/half-duplex for Ethernet/Fast Ethernet speeds - Full-duplex only for Gigabit Ethernet speed - Jumbo Frames: 9000 Bytes Switching fabric - 10 Gbps Data Transfer Rates - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) - Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) - Gigabit Ethernet: 2000 Mbps (full duplex) Packet Filtering/Forwarding Rates - Ethernet: 14,880 pps por puerto - Fast Ethernet: 148,800 pps por puerto - Gigabit Ethernet: 1,488,000 pps por puerto RAM Buffer - 128KB |
| Otras características | LED Indicators - Por puerto: Link/Actividad/Velocidad - Per device: Power Quality of Service (QoS) - Soporta 802.1p QoS - 4 Queues, Strict Mode Medioambiental - Energy Efficient Ethernet (EEE) standard - D-Link Green: power saving by cable length detection - RoHS compliant Alimentación - Externa 5 V/1 A Level V Power Adapter Consumo (DC input) - Standby: 0.5 W. - Máxima: 2.01 W MTBF - 1,688,338 horas Temperatura - Operación: 0 to 50 ?C - Almacenamiento: -10 to 70 ?C Humedad - Operación: 10% to 90% RH sin condensación - Almacenamiento: 5% to 90% RH sin condensación Dimensiones (An x Prof x Al) - 100 x 98 x 28 mm Certificaciones - FCC Class B - ICES-003 Class B - CE Class B - C-Tick Class B - VCCI Class B - cUL - CB |
| Fecha Revisión | 12-02-2016 por MSB |
| Marca | D-Link |
| Modelo | DGS-105 |
| Standards | - IEEE 802.3 10BASE-T Ethernet - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3ab 1000BASE-T Gigabit Ethernet - ANSI/IEEE 802.3 NWay auto-negotiation - IEEE 802.3x flow control - IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Especificaciones | Nº de puertos - 5 x Puertos Layer2 - MAC address table: 2K - Auto MDI/MDIX crossover for all ports - Store-and-forward switching scheme - Full/half-duplex for Ethernet/Fast Ethernet speeds - Full-duplex only for Gigabit Ethernet speed - Jumbo Frames: 9000 Bytes Switching fabric - 10 Gbps Data Transfer Rates - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) - Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) - Gigabit Ethernet: 2000 Mbps (full duplex) Packet Filtering/Forwarding Rates - Ethernet: 14,880 pps por puerto - Fast Ethernet: 148,800 pps por puerto - Gigabit Ethernet: 1,488,000 pps por puerto RAM Buffer - 128KB |
| Otras características | LED Indicators - Por puerto: Link/Actividad/Velocidad - Per device: Power Quality of Service (QoS) - Soporta 802.1p QoS - 4 Queues, Strict Mode Medioambiental - Energy Efficient Ethernet (EEE) standard - D-Link Green: power saving by cable length detection - RoHS compliant Alimentación - Externa 5 V/1 A Level V Power Adapter Consumo (DC input) - Standby: 0.5 W. - Máxima: 2.01 W MTBF - 1,688,338 horas Temperatura - Operación: 0 to 50 ?C - Almacenamiento: -10 to 70 ?C Humedad - Operación: 10% to 90% RH sin condensación - Almacenamiento: 5% to 90% RH sin condensación Dimensiones (An x Prof x Al) - 100 x 98 x 28 mm Certificaciones - FCC Class B - ICES-003 Class B - CE Class B - C-Tick Class B - VCCI Class B - cUL - CB |
| Fecha Revisión | 12-02-2016 por MSB |
In Stock (71 available)
