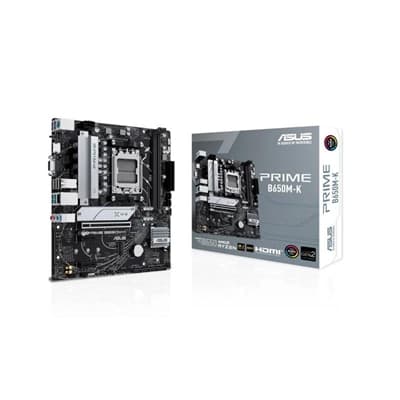

Asus
| Marca | Asus |
| Modelo | 90MB1F60-M0EAY0 |
| Plataforma | - mATX (24,4 cm x 21,1 cm) |
| Chipset | -Intel B650 |
| CPUSoportados | - AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Memoria | - 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* - Dual Channel Memory Architecture - Supports AMD Extended Profiles for Overclocking (EXPO™) - OptiMem II |
Slots Expansión | - 1 x PCIe 4.0 x16 slot (supports x16 mode) - 2 x PCIe 4.0 x1 slots |
| Gráficos | - 1 x VGA - 1 x HDMI |
Puertos E/S, Conectores | Conectores Internos E/S - 2 x 4-pin Chassis Fan headers - 1 x 24-pin Main Power connector - 1 x 8-pin +12V Power connector - 2 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports - 2 x Addressable Gen 2 headers - 1 x Aura RGB header - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (AAFP) - 1 x S/PDIF Out header - 1 x Speaker header - 1 x SPI TPM header (14-1pin) - 1 x 10-1 pin System Panel header Panel E/S Trasero - 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x VGA port - 1 x HDMI port - 1 x Realtek 2.5Gb Ethernet port - 3 x Audio jacks - 1 x BIOS FlashBack button - 1 x PS/2 Keyboard/Mouse combo port |
Otras Características | Audio - Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers LAN - 1 x Ethernet Realtek de 2,5 Gb Almacenamiento - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports USB - 2 x USB 3.2 Gen 2 ports (2 x Type-A) - 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x USB 3.2 Gen 1 connector (supports USB Type-C) - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Fecha Revisión | 15-07-2024 por RTY |
| Marca | Asus |
| Modelo | 90MB1F60-M0EAY0 |
| Plataforma | - mATX (24,4 cm x 21,1 cm) |
| Chipset | -Intel B650 |
| CPUSoportados | - AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Memoria | - 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* - Dual Channel Memory Architecture - Supports AMD Extended Profiles for Overclocking (EXPO™) - OptiMem II |
Slots Expansión | - 1 x PCIe 4.0 x16 slot (supports x16 mode) - 2 x PCIe 4.0 x1 slots |
| Gráficos | - 1 x VGA - 1 x HDMI |
Puertos E/S, Conectores | Conectores Internos E/S - 2 x 4-pin Chassis Fan headers - 1 x 24-pin Main Power connector - 1 x 8-pin +12V Power connector - 2 x M.2 slots (Key M) - 4 x SATA 6Gb/s ports - 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports - 2 x Addressable Gen 2 headers - 1 x Aura RGB header - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (AAFP) - 1 x S/PDIF Out header - 1 x Speaker header - 1 x SPI TPM header (14-1pin) - 1 x 10-1 pin System Panel header Panel E/S Trasero - 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x VGA port - 1 x HDMI port - 1 x Realtek 2.5Gb Ethernet port - 3 x Audio jacks - 1 x BIOS FlashBack button - 1 x PS/2 Keyboard/Mouse combo port |
Otras Características | Audio - Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers LAN - 1 x Ethernet Realtek de 2,5 Gb Almacenamiento - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports USB - 2 x USB 3.2 Gen 2 ports (2 x Type-A) - 2 x USB 3.2 Gen 1 ports (2 x Type-A) - 4 x USB 2.0 ports (4 x Type-A) - 1 x USB 3.2 Gen 1 connector (supports USB Type-C) - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Fecha Revisión | 15-07-2024 por RTY |
