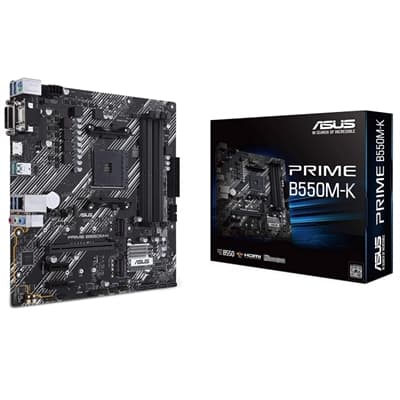

Name: ASUS Placa Base PRIME B550M-K mATX AM4
Brand: Asus
SKU: IPBPA40114
Price: 67.99 EUR
Availability: InStock

Marca	Asus
Modelo	PRIME B550M-K (90MB14V0-M0EAY0)
Plataforma	- m-ATX (24.4 cm x 24.4 cm)
Chipset	- AMD® B550 chipset
CPU Soportados	- Admite AMD Ryzen™ 3ª generación y AMD Ryzen™ 3ª generación con procesador de gráficos Radeon™ con Socket AMDAM4
Memoria	- 3ª Gen AMD Ryzen™ 4 x DIMM, Max. 128GB,DDR44600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * - 3ª Gen AMD Ryzen™ con gráficos Radeon™ 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * - Dual Channel Memory Architecture - ECC Memory (ECC mode)
Slots Expansión	3rd Gen AMD Ryzen™ Processors - 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors - 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset - 2 x PCIe 3.0 x1
Gráficos	- 1 x D-Sub - 1 x DVI-D - 1 x HDMI 2.1(4K@60HZ)
Puertos E/S, Conectores	Internos - 1 x CPU Fan - 2 x Chassis Fan - 1 x USB 3.2 Gen 1 - 2 x USB 2.0 - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) - 1 x SPI TPM header - 4 x SATA 6Gb/s - 1 x S/PDIF out header(s) - 1 x 24-pin EATX Power - 1 x 8-pin EATX 12V Power - 1 x Front panel audio (AAFP) - 1 x Clear CMOS jumper(s) - 1 x System panel - 1 x COM port header - 1 x Speaker Externos - 1 x PS/2 keyboard/mouse combo - 1 x DVI-D - 1 x D-Sub - 1 x HDMI - 1 x LAN (RJ45) - 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) - 4 x USB 3.2 Gen 1 (blue) Type-A - 3 x Audio jack(s)
Otras Características	Almacenamiento - 2 x M.2 - 4 x SATA 6Gb/s - SoportaRaid 0, 1, 10 USB - 2 x USB 3.2 Gen 2 (2 x Type-A) - 4 x USB 3.2 Gen 1 (4 x Type-A) - 2 x USB 3.2 Gen 1 (2 x Type-A) - 4 x USB 2.0 (4 x Type-A) Red - Realtek RTL8111H 1Gb Ethernet - ASUS LANGuard Audio - Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Fecha Revisión	14-09-2020 por MSB

Marca	Asus
Modelo	PRIME B550M-K (90MB14V0-M0EAY0)
Plataforma	- m-ATX (24.4 cm x 24.4 cm)
Chipset	- AMD® B550 chipset
CPU Soportados	- Admite AMD Ryzen™ 3ª generación y AMD Ryzen™ 3ª generación con procesador de gráficos Radeon™ con Socket AMDAM4
Memoria	- 3ª Gen AMD Ryzen™ 4 x DIMM, Max. 128GB,DDR44600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * - 3ª Gen AMD Ryzen™ con gráficos Radeon™ 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * - Dual Channel Memory Architecture - ECC Memory (ECC mode)
Slots Expansión	3rd Gen AMD Ryzen™ Processors - 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors - 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset - 2 x PCIe 3.0 x1
Gráficos	- 1 x D-Sub - 1 x DVI-D - 1 x HDMI 2.1(4K@60HZ)
Puertos E/S, Conectores	Internos - 1 x CPU Fan - 2 x Chassis Fan - 1 x USB 3.2 Gen 1 - 2 x USB 2.0 - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) - 1 x SPI TPM header - 4 x SATA 6Gb/s - 1 x S/PDIF out header(s) - 1 x 24-pin EATX Power - 1 x 8-pin EATX 12V Power - 1 x Front panel audio (AAFP) - 1 x Clear CMOS jumper(s) - 1 x System panel - 1 x COM port header - 1 x Speaker Externos - 1 x PS/2 keyboard/mouse combo - 1 x DVI-D - 1 x D-Sub - 1 x HDMI - 1 x LAN (RJ45) - 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) - 4 x USB 3.2 Gen 1 (blue) Type-A - 3 x Audio jack(s)
Otras Características	Almacenamiento - 2 x M.2 - 4 x SATA 6Gb/s - SoportaRaid 0, 1, 10 USB - 2 x USB 3.2 Gen 2 (2 x Type-A) - 4 x USB 3.2 Gen 1 (4 x Type-A) - 2 x USB 3.2 Gen 1 (2 x Type-A) - 4 x USB 2.0 (4 x Type-A) Red - Realtek RTL8111H 1Gb Ethernet - ASUS LANGuard Audio - Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Fecha Revisión	14-09-2020 por MSB
